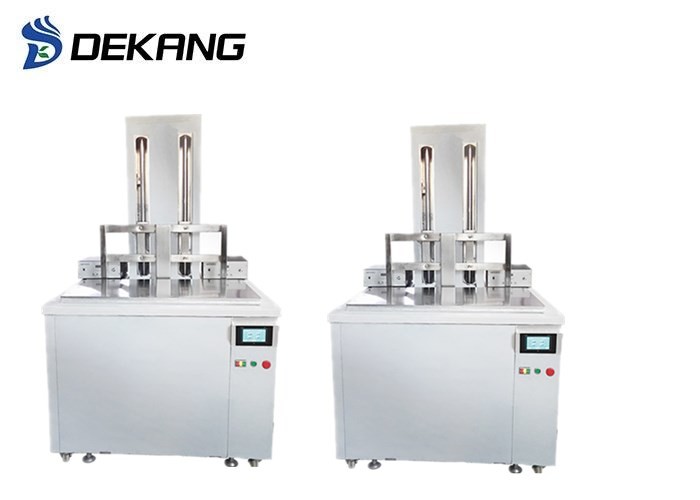

Extra Large Stainless Steel Digital Automotive Ultrasonic Cleaner
175L 0-2400W
Ultrasonic cleaner
Ultrasonic is widely used throughout industries to remove difficult
contaminants from the parts during or after manufacturing process
which might require a stage of cleaning before the next process. In
general, if an item can be cleaned with liquid, it can be cleaned
much faster and more thoroughly with an ultrasonic cleaner.Three
factors affecting the scrubbing action are the degree of liquid
degassing, the ultrasonic frequency and the chemical
characteristics of the liquid at specific temperatures.
Degassing is the removal of unwanted air from the liquid, typically
found in fresh tap water. As the cavities form, they fill with the
unwanted air forming bubbles, which resist collapse and tend to
remain suspended in the liquid. These bubbles act as "shock
absorbers," which materially reduce cleaning efficiency. The amount
of air can be reduced by periodically switching off, or modulating,
the sound energy to permit adjacent bubbles to coalesce, float to
the surface, and escape. The type of modulation is important, for
the correct balance between degassing and cleaning efficiency must
be selected for each cleaning application.
Frequency affects cleaning efficiency by determining the cavity
size. Low frequencies generate large but relatively few cavities
with high cleaning power. High frequencies generate a great number
of small cavities with good penetrating capability. The selection
of the correct frequency is difficult, for it varies with each
cleaning application.
DeKang industrial ultrasonic cleaner features
Ultrasonic is widely used throughout industries to remove difficult
contaminants from the parts during or after manufacturing process
which might require a stage of cleaning before the next process. In
general, if an item can be cleaned with liquid, it can be cleaned
much faster and more thoroughly with an ultrasonic cleaner.
. SUS 304 stainless steel tank
. Industrial grade integrated circuit
. 0-80ºC temperature range
.1-99 minutes working time
. Power adjustable
. Auto lift and swill or agitating
. Dewaxing and degreasing function
. 28KHz for gross rinse or 40KHz for intensive rinse
. Auto stand-by, sleep, and wake-up by one key-press mode
. Digital controller of high-precision and a long service-life
What can you clean with an ultrasonic cleaner ?
A. Clean specialized instruments, components and PCBs of sundry
shops, workshops, factories etc.;
B. Smash, emulsify, scatter, hydrolyze, extract, degass certain
analyzed objects in labs.
C. Clean many different types of objects, including jewelry, lenses
and other optical parts, watches, dental and surgical instruments,
tools, coins, fountain pens, golf clubs, fishing reels, window
blinds, firearms, car fuel injectors, musical instruments,
gramophone records, industrial parts and electronic equipment
Specification
| Model: | DK-4810DM |
| Tank Size(mm): | 700*500*500 |
| Tank thickness(mm): | 2.5(SUS304/316) |
| Capacity: | 175L |
| Frequency(KHz): | 28/40 |
| Ultrasonic Power(W): | 0-2400 |
| Heating Capacity(W): | 6000 |
| Timing Range(min:secs): | 1~99 |
| Temperature Range(℃) | 0~80 |
| Water Drainage | Yes |
Company Profile
Shenzhen Dekang Cleaning Electronic Appliance Co.,Limited . R&D
department can be divided into five sections:mechical structure
design section,electronic design section,software developing
section,graphic design section,testing section.All menbers are
excellent engeineers who have at least 5 years' R&D experence.
Now our products are composed of household ultrasonic
cleaner,mutifunctional aweep ultrasonic cleaner,power adjustable
ulltrasonic cleaners,smart dual-bands ultrasonic cleaner,dihital
ultrasonic cleaner,mechanical ultrasonic cleaner,industrial
ultrasonic cleaner,submersible ultrasonic transducer etc.
Our company is a comprehensive new high-tech enterprise which
focuses on the research&development, productction and sale of
household,commercial,laboratorial,industrial high-power ultrasonic
cleaner ect.Especially,we also can customize non-standard products
according to customers'requirements.
All Dekang’s standard products have achieved most international
standards, such as CE certification, RoHS certification, FCC
certification etc. Besides, all no-standard products also can
satisfy all requirements of these most international standards.
