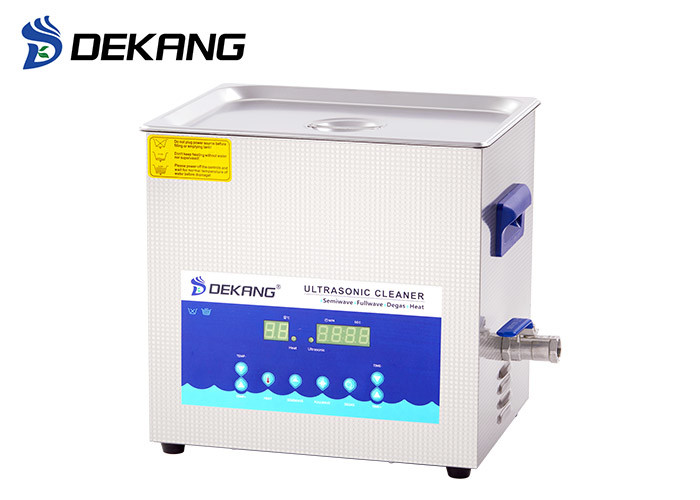

10L Dual-Frequency Ultrasonic Cleaner for Cleaning Irregular and
Complex Instruments
What is Ultrasonic Cleaning?
Ultrasonic cleaning uses ultrasonic energy in an immersion cleaning
tank to assist in the removal of tenacious or stubborn soils from
parts. An ultrasonic system always consists of at least three main
components:
1. A tank to hold the cleaning fluid and the dirty parts
2. A generator to transform the line voltage into an ultrasonic
signal
3. Transducers to convert the ultrasonic electrical signal into
mechanical energy
How does Ultrasonic Cleaning Work?
An ultrasonic system works by inducing controlled cavitation in the
cleaning fluid. Cavitation refers to microscopic voids or "bubbles"
that form when the transducers emit sufficient ultrasonic energy
into the fluid. The cavitation bubbles form relatively slowly and
then collapse suddenly, releasing tremendous energy against the
surfaces of objects immersed in the tank that ‘scrubs’ hard to
remove soils from the parts.
Features
1. Die casting stainless steel tank
2. Industrial grade integrated circuit
3. 0~80℃ temperature range
4. 1~99 minutes working time
5. Degassing and degreasing function
6. Fullwave(40KHz) for intensive rinse, semiwave(28KHz) for gross
rinse
7. Auto stand-by, sleep, and wake-up by one key-press mode
8. Digital controller of high-precision and a long service-life
Applications
Smart dual-bands ultrasonic cleaners are suitable to clean
irregular and complex specialized instruments, components and PCBs
of sundry shops, workshops, factories etc; smash, emulsify,
scatter, hydrolyze, extract, degas certain analyzed stuffs in labs.
Specifications
| Model: | DK-1000S |
| Tank Size(mm): | 300*240*150 |
| Overall Size(mm): | 330*270*330 |
| Capacity: | 10L |
| Frequency(KHz): | 28,40KHz |
| Ultrasonic Power(W): | 240 |
| Heating Power(W): | 300 |
| Timing Range(min:secs): | 1-99 |
| Temperature Range(ºc): | 0-80 |
Certifications
All Dekang’s standard products have achieved most international
standards, such as CE certification, RoHS certification, FCC
certification etc. Besides, all no-standard products also can
satisfy all requirements of these most international standards.
Company Profile
Shenzhen DeKang Electronic Cleaning Appliances Co., Limited is a
comprehensive new high-tech enterprise which focuses on the
research & development, production and sale of household,
commercial, laboratorial, industrial high-power ultrasonic cleaners
etc. Especially, we also can customize non-standard products
according to customers' requirements.
Our R&D department can be divided into five sections:
mechanical structure design section, electronic design section,
software developing section, graphic design section, testing
section. All members are excellent engineers who have at least 5
years' R&D experience. They are good at introducing most
advanced technologies in the world into our products and make some
innovative improvement.
Now our products are composed of household ultrasonic cleaners,
multifunctional sweep ultrasonic cleaner, power adjustable
ultrasonic cleaner, smart dual-bands ultrasonic cleaner, digital
ultrasonic cleaner, mechanical ultrasonic cleaner, industrial
ultrasonic cleaners, submersible ultrasonic transducers etc. All of
our standard products have achieved most international standards,
such as CE certificate, ROHS certificate, FCC certification etc.
Besides, DeKang also have strict examining procedures for
controling the quality of non-standard products.
