900W Customized Submersible Ultrasonic Transducer for Industrial
Cleaning
What is Ultrasonic Cleaning?
Ultrasonic cleaning uses ultrasonic energy in an immersion cleaning
tank to assist in the removal of tenacious or stubborn soils from
parts. An ultrasonic system always consists of at least three main
components:
1. A tank to hold the cleaning fluid and the dirty parts

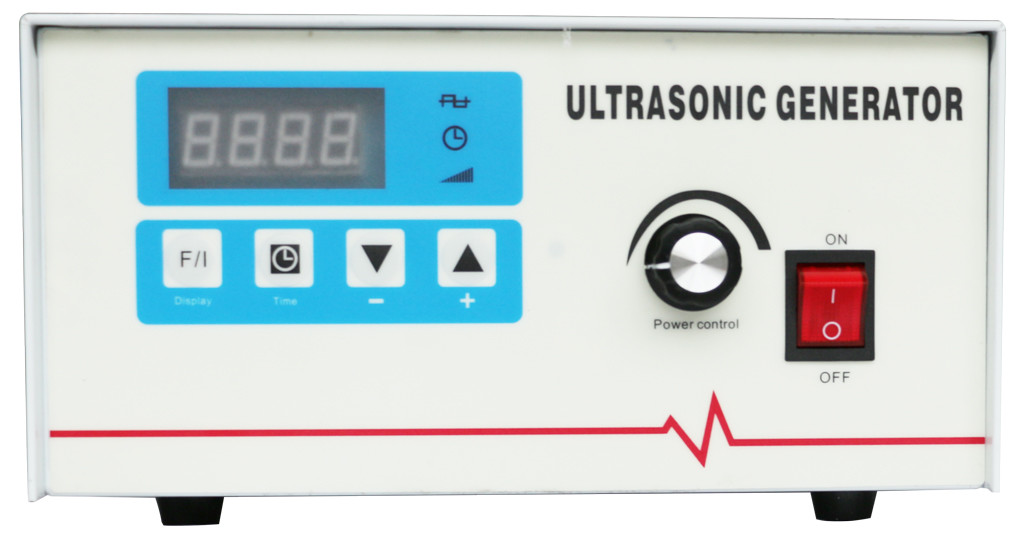

2. A generator to transform the line voltage into an ultrasonic
signal
3. Transducers to convert the ultrasonic electrical signal into
mechanical energy
How does Ultrasonic Cleaning Work?
An ultrasonic system works by inducing controlled cavitation in the
cleaning fluid. Cavitation refers to microscopic voids or "bubbles"
that form when the transducers emit sufficient ultrasonic energy
into the fluid. The cavitation bubbles form relatively slowly and
then collapse suddenly, releasing tremendous energy against the
surfaces of objects immersed in the tank that ‘scrubs’ hard to
remove soils from the parts.
Features
1. Customized size and shape
2. SUS 304 stainless steel plate
3. Industrial grade integrated circuit
4. 1~999 minutes working time
5. Power adjustable
6. Degassing and degreasing function
7. 28KHz for gross rinse or 40KHz for intensive rinse
8. Digital controller of high-precision and a long service-life
Applications
Submersible ultrasonic transducers can be used to clean irregular,
complex, big specialized instruments, components and PCSs of sundry
shops, workshops, factories etc.
Specifications
| Model: | DK-1810P |
| Minimum Size(mm): | 406*300*100 |
| Overall Size(mm): | 500*330*330 |
| Quantity of Transducer(pcs) | 18 |
| Frequency(KHz): | 28/40KHz |
| Ultrasonic Power(W): | 800 |
| Timing Range(min:secs): | 1-999 |
Certifications
All Dekang’s standard products have achieved most international
standards, such as CE certification, RoHS certification, FCC
certification etc. Besides, all no-standard products also can
satisfy all requirements of these most international standards.
