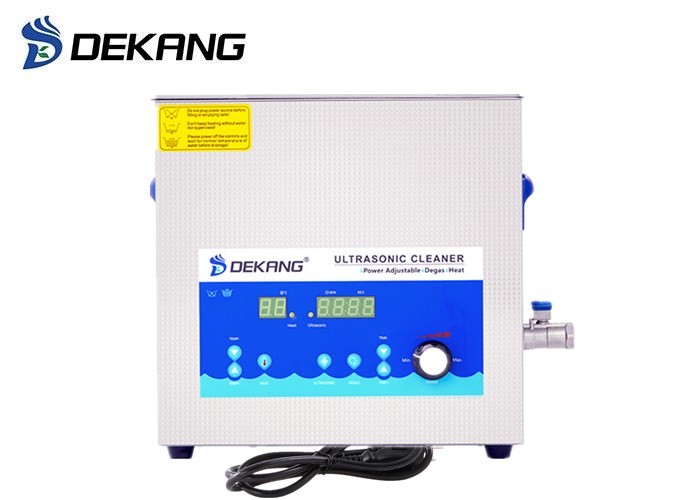

Heating Timing Ultrasonic Cleaner Electronics Stainless Steel Tank
10L 240W
Ultrasonic frequency is produced by generator-powered transducers
bonded to the bottom of the tank. They vibrate in kilohertz (kHz or
thousands of cycles per second) above the hearing range, which is
approximately 20 kHz.
Most ultrasonic cleaners operate between 35 and 45 kHz. This
frequency range is well suited to the vast majority of cleaning
tasks. Sample prep is often accomplished with units operating at 37
kHz. An example of an ultrasonic unit especially designed for
sample prep is microprocessor-controlled Elma S150.
A lower frequency such as 25 kHz produces larger cavitation
bubbles. When these bubbles implode they release a larger amount of
cleaning energy. For coarse cleaning such as removal of lapping
abrasives or polishing paste, a lower frequency will be more
effective.
What will you do with ultrasonic cleaner ?
Ultrasonic cleaners do a lot more than clean parts such as gears,
carburetors, PCB boards and surgical instruments. In the lab they
are broadly employed to degas solvents, disperse nanoparticles, and
emulsify, dissolve, disperse and otherwise prepare lab samples.
An ultrasonic system works by inducing controlled cavitation in the
cleaning fluid. Cavitation refers to microscopic voids or "bubbles"
that form when the transducers emit sufficient ultrasonic energy
into the fluid. The cavitation bubbles form relatively slowly and
then collapse suddenly, releasing tremendous energy against the
surfaces of objects immersed in the tank that ‘scrubs’ hard to
remove soils from the parts.
Features
1. Die casting stainless steel tank
2. Industrial grade integrated circuit
3. 0~80℃ temperature range
4. 1~99 minutes working time
5. Power adjustable, degas function
6. Degassing and degreasing function
7. 28KHz for gross rinse or 40KHz for intensive rinse
8. Auto stand-by, sleep, and wake-up by one key-press mode
9. Digital controller of high-precision and a long service-life
Specifications
| Model: | DK-1000P |
| Size of Tank: | 330*240*150 |
| General Dimension(mm): | 330*270*330 |
| Capacity: | 10L |
| Frequency: | 28/40KHz |
| Ultrasonic Power: | 0-240W |
| Heating Capacity: | 300W |
| Timing Range : | 1-99 |
| Temperature Range: | 0-80ºC |
| Water Drainage: | Yes |
Certification
All Dekang’s standard products have achieved most international
standards, such as CE certification, RoHS certification, FCC
certification etc. Besides, all no-standard products also can
satisfy all requirements of these most international standards.
Company Profile
Shenzhen DeKang Electronic Cleaning Appliances Co., Limited is a
comprehensive new high-tech enterprise which focuses on the
research & development, production and sale of household,
commercial, laboratorial, industrial high-power ultrasonic cleaners
etc. Especially, we also can customize non-standard products
according to customers' requirements.
Our R&D department can be divided into five sections:
mechanical structure design section, electronic design section,
software developing section, graphic design section, testing
section. All members are excellent engineers who have at least 5
years' R&D experience. They are good at introducing most
advanced technologies in the world into our products and make some
innovative improvement.
Now our products are composed of household ultrasonic cleaners,
multifunctional sweep ultrasonic cleaner, power adjustable
ultrasonic cleaner, smart dual-bands ultrasonic cleaner, digital
ultrasonic cleaner, mechanical ultrasonic cleaner, industrial
ultrasonic cleaners, submersible ultrasonic transducers etc. All of
our standard products have achieved most international standards,
such as CE certificate, ROHS certificate, FCC certification etc.
Besides, DeKang also have strict examining procedures for
controling the quality of non-standard products.
